22-Layer Mixed-Laminate PCB With Buried Via & 2nd Order HDI

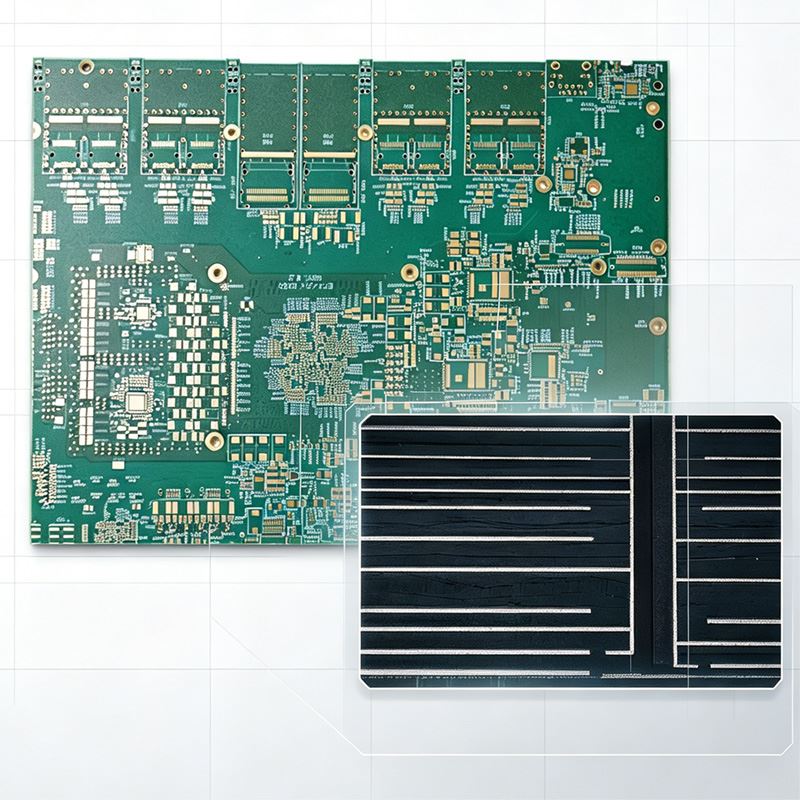

Customized for 5G communication switch mainboards, this 22-layer high-complexity PCB adopts mixed lamination stack-up with Isola 185HR (RTF) high-speed substrate and Tachyon 100G ultra-low-loss high-frequency material. Combined with buried vias & 2nd-order HDI stacked microvia technology, it balances ultra-dense routing, superior signal integrity and mechanical rigidity. Ideal for mass data transmission, multi-chip dense packaging and high-power heat dissipation of 5G switches, supporting stable 100G high-speed signal transmission with long-term reliability.
Description
Core Specifications
- Layers: 22 Layers
- Finished Board Thickness: 3.25mm
- Materials: Isola 185HR (RTF) + Tachyon 100G low-loss laminate
- Interconnection Tech: Buried Via + 2nd Order HDI Stacked Microvia
Key Advantages
- Dual-performance mixed substrate: Isola 185HR (RTF) delivers high thermal resistance and low thermal expansion for multi-lamination stability; Tachyon 100G features ultra-low Dk/Df to minimize signal loss up to 100GHz.
- 2nd-order HDI + buried via structure: Greatly improves wiring density to support high-pin-count BGA layout of switch chips.
- 22-layer thick stack-up: Complete power & ground planes for high-current power supply and effective EMI shielding.
- Industrial-grade reliability: Resists thermal cycling and humidity, stable for 7/24 continuous operation in data center.
Application
5G core switch mainboard, 100G high-speed switching equipment, data center server backplane, 5G bearer network control board
