80Layer ATE Tester PCB Board

Introducing the 80Layer ATE Tester PCB Board – A Revolutionary Product for Performance and Efficiency Enhancement

As a manufacturer located in China, we are proud to offer our latest innovation – the 80Layer ATE Tester PCB Board. This product is designed to cater to the needs of merchants in countries outside of China who are seeking an efficient and reliable solution for their testing requirements.

The 80Layer ATE Tester PCB Board is a result of our extensive research and development efforts combined with our expertise in manufacturing high-quality PCB boards. Our product aims to address the common concerns of merchants, such as performance and efficiency, to ensure that their products meet the highest standards in the market.

In this product introduction, we will explore the key features and benefits of the 80Layer ATE Tester PCB Board in detail.

• Proven technology

Our product is equipped with advanced technology that has been proven to enhance performance and efficiency. We have incorporated the latest automated test equipment in our 80Layer ATE Tester PCB Board to enable fast and accurate testing for your products. With this technology, our product can significantly reduce testing time and minimize production downtime, leading to improved productivity and increased profits.

• Quality assurance

At our facility in China, we conduct rigorous quality control measures to ensure that our product meets the highest standards of quality. Our 80Layer ATE Tester PCB Board undergoes a thorough testing process to ensure that it is reliable, durable, and free from defects. We use the most advanced equipment to carry out testing, and our team of experts thoroughly checks every component of the board before it is shipped.

• Cost-effective solution

One of the key benefits of our 80Layer ATE Tester PCB Board is its cost-effectiveness. Our product is competitively priced, making it an affordable solution for merchants looking for a high-performing PCB board. By reducing testing time and minimizing production downtime, our product can help merchants save on costs and increase their profitability.

• Customizable options

We understand that every merchant has unique needs and requirements. Therefore, we offer customizable options for our 80Layer ATE Tester PCB Board to cater to your specific needs. We can tailor our product to meet your testing needs and demands, ensuring that you get the best value for your money.

• Exceptional customer service

At our company, we prioritize customer satisfaction above all else. We are committed to providing exceptional customer service and support to our clients. We have a dedicated team of experts who can answer any questions and provide guidance on the best options for your business. Our customer service team is also available to address any concerns or issues that you may encounter.

In conclusion, the 80Layer ATE Tester PCB Board is an innovative and reliable solution for your testing needs. Our product is equipped with the latest technology that is proven to enhance performance and efficiency, while our rigorous quality control measures ensure that our product meets the highest standards of quality. With customizable options, competitive pricing, and exceptional customer service, our 80Layer ATE Tester PCB Board is an excellent choice for merchants seeking a cost-effective and reliable solution.

80 layer ATE test pcb board refers to the circuit board with 80 layers for ATE test equipment. ATE is the abbreviation of Automatic Test Equipment. In the semiconductor industry, ATE refers to the integrated circuit (IC) automatic testing machine, which is used to test the integrity of integrated circuit functions, and is the final process of integrated circuit production to ensure the quality of integrated circuit manufacturing. With the continuous evolution of semiconductor manufacturing process, the requirements for ATE tester are becoming higher and higher. This type of board belongs to high multi-layer and high-precision board.

Key Point

The superposition of multi-sheet core plate and PP is prone to problems such as layering, slide and drum residue when pressing. Because of the large number of layers, the expansion and shrinkage control and size coefficient compensation cannot keep consistent. The thin inter layer insulation layer is easy to lead to the failure of inter layer reliability test. Multi-layer boards adopt high Tg or other special boards materials. The roughness of drilling holes made of different materials is different, which increases the difficulty of removing the glue residue in the holes. The high-density multi-layer board has high hole density, low production efficiency, and is easy to break the tool. The hole edge between holes of different networks is too close, which will lead to the CAF effect problem.

Although there are many difficulties, our technicians, through unremitting efforts and technical breakthrough, have successfully tested the 80 layer ATE test circuit board.

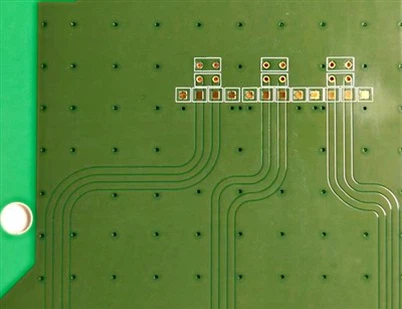

Item: 80Layer ATE tester pcb board   Layer: 80L   Material:S1000-2M   Board thickness: 6.35MM   Minimum aperture: 0.3MM   Surface Treatment:Electro gold plating   The thickness of gold: ≥0.5UM

The key control procedures for the assessment and identification on the 80th layer printed circuit board are as follows

A:Inner layer pattern

High number of layers . Core material is up to 39 sheet.

B:Lamination

Control of inner-layer dislocation and pressing parameters.

C:Drilling

Drilling parameters, hole wall quality, inner alignment degree control, edge length.

D:Plating

Control of the ability of plasma degumming and deep plating.

Technical Capacity

Why choose us?

• Our team works closely with clients to ensure their needs and expectations are exceeded.
• As long as you order our company's products, no matter where you are, we will dispatch professional personnel to serve you in time. Your satisfaction is our promise! Perfect after-sales service is our eternal pursuit, and it is our wish to cooperate with you!
• We work to ensure that our Multi Layer PCB products meet or exceed stringent testing requirements.
• We strive to turn technology into a practical market advantage because it enables our 80Layer ATE Tester PCB Board and services to be brought to market more quickly than competitors.
• Our team works diligently to ensure our Multi Layer PCB products meet or exceed customer expectations.
• We look forward to working with our supply chain partners to establish a transparent, responsible and sustainable supply chain and supply chain management mechanism, so that our products and services can meet the requirements of environmental and social sustainability from the source, thus achieving sustainable development.
• We offer technical training and support to our clients on the use of our Multi Layer PCB products.
• After a long period of hard work, our company now has a high-quality management team, product design team, and high-level skilled workers.
• Our team is dedicated to providing our customers with exceptional service and support.
• Talent is the first element of enterprise development rely on talent, cultivate talent, play talent, cohesion of talent, talent is the first element of our business success.
