2 Stage HDI Rigid Flex Board

The Stage HDI Rigid Flex board is an advanced advanced circuit board with complex design and manufacturing requirements. In the production process, the following aspects need special attention.

Firstly, the material selection of soft rubber and hard board is very important, and their compatibility and adaptability need to be considered. Soft glue usually uses polymer materials, and hard boards use high-quality copper clad laminates or composite materials. Secondly, special attention should be paid to the combination of soft glue and hard board during the production process. Finally, the manufacturing process requires strict control of various quality factors. Every detail from material selection to production process requires quality control.

This circuit board has many advantages and can bring many benefits to the design and production of electronic products.

It is a circuit board with high-density interconnection characteristics. It adopts the technology of microscopic holes and blind buried holes between different layers, which makes the circuit lines on the board more compact, the signal transmission speed is faster, and the noise interference is smaller. Increased overall performance and reliability.

When using this type of circuit board, different materials can be used for proper matching, and the hardness, flexibility and different thermal expansion coefficients of the board can be flexibly processed, so that the board has better mechanical properties and reliability. This makes the board widely used in many electronic products such as mobile phones, notebook computers, and digital cameras.

It has several advantages over traditional PCBs. The first is high integration, which can accommodate more electronic components in the same or smaller area, so that more compact and thinner electronic products can be created. The second is high signal transmission speed and stability. Since the distance between each device on the board is closer and the circuit lines are more compact, the signal transmission speed is faster, the noise interference is smaller, and the overall performance and stability can be greatly improved. improve.

At the same time, due to the excellent mechanical properties and reliability of the 2 Stage HDI Rigid Flex board, it can operate well in complex production processes and environments, so it is widely used in various electronic equipment and systems, effectively improving the performance of electronic products. performance and quality.

In general, the production of 2 Stage HDI Rigid Flex boards requires a high degree of professional technology and experience to ensure that the products meet the strict electronics industry standards. High-quality, high-reliability electronic products can only be produced if manufacturing requirements and various quality control measures are strictly followed.

Sihui Fuji is a professional electronic manufacturer with nearly 14 years of production experience. The production line is equipped with advanced equipment and scientific management,We now have the ability to mass produce various types of rigid-flex board. If you also have a need for rigid-flex board, please contact us.

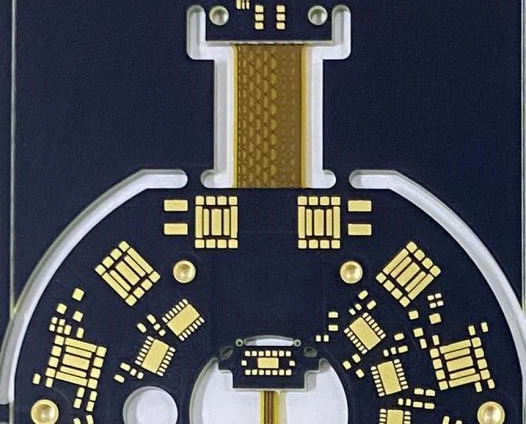

The specification of sample board

Item: 2 Stage HDI Rigid Flex board

Layers: 8

Material: S1000-2MB+IF-2LD

Board thickness: 1.65±0.15mm

Surface treatment:ENIG
