Car Head Up Display Pcb

The car head up display is a high-tech device on modern cars, and many car brands regard it as a standard or optional accessory.

The design of the head up display has undergone a simple and reasonable arrangement, ensuring seamless coordination between all devices. Its high-efficiency and energy-saving advantages make it more cost-effective for car owners to use. The position of the printed circuit board in the head up display is also crucial as it is placed in front of and within the driver's line of sight, so any issues will immediately attract the driver's attention. Moreover, this compact printed circuit board can be fixed above without blocking the driver's line of sight or affecting air flow.

During driving, the head up display pcb plays an important role. It can accurately and intuitively display various information on the car to the driver, allowing them to obtain necessary information in a timely manner while looking straight ahead, preventing traffic accidents caused by distraction. If the vehicle malfunctions, this device can also detect it in a timely manner and prompt the repair method and location on the head up display screen, allowing the owner to repair with peace of mind or quickly contact for assistance.

The printed circuit board of the head up display is mainly composed of several electronic components, such as LED lights, Photo-resistor, etc. These components have a clear division of labor and work together, ultimately achieving the information display required by the driver. For example, when the vehicle reaches a certain speed, the printed circuit board will display information such as vehicle speed, RPM, navigation, etc., allowing the driver to maintain their line of sight ahead without looking down at the dashboard, improving driving safety.

The application range of the printed circuit board for car head up display is very wide. It can be applied to various types of vehicles, such as sedans, SUVs, and trucks. In the automotive industry, this technology has been widely applied and promoted, becoming a standard feature for more and more car models. The printed circuit board of the head up display not only improves the driver's comfort and experience, but also has a positive significance for popularizing intelligent transportation and promoting the Vehicle-to-everything. Its continuous improvement and updating also reflect the continuous development and progress of automotive technology.

The car head up display pcb is one of the important achievements in automotive technology, bringing convenience and safety to driving, while also demonstrating the continuous progress of technology. I believe that in the future, automotive technology will penetrate deeper into our lives, providing us with a more enjoyable and safe experience for travel.

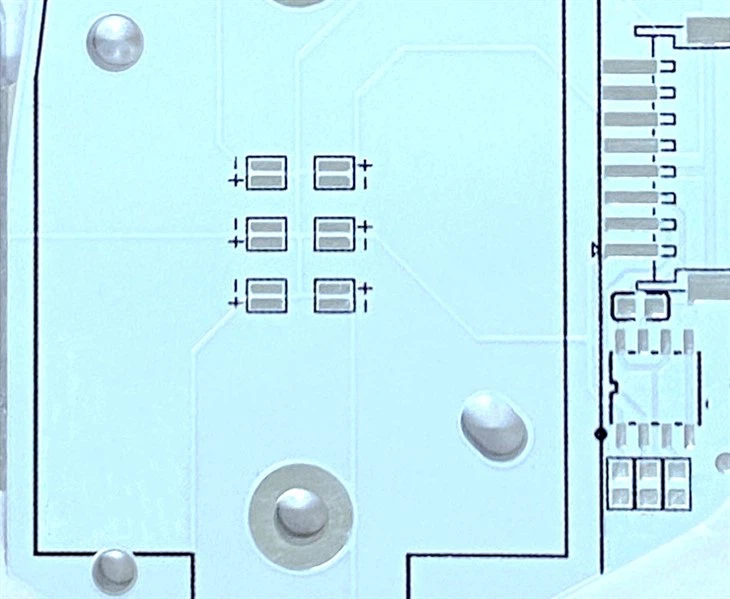

The specification of sample board

Item:Car head up display pcb

Characteristic: Single sided and single sided aluminum core

Material:HA82-T3 aluminum core

Layer:1

Board thickness:2.0±0.2mm

Surface treatment:HASL
