High Frequency Mixed Pcb

Introduction:

As a manufacturer based in China, we offer a range of quality products to merchants all across the globe. Our latest offering is the High Frequency Mixed PCB – a product that is designed to meet the requirements of modern technology.

In today's fast-paced world, everything is digital, and the technology is changing rapidly. A modern PCB should, therefore, cater to the changing requirements of electronic gadgets and equipment. Our High Frequency Mixed PCB is a perfect example of a technology that meets the modern demand.

This product is a type of PCB that combines high-frequency circuits with mixed signals. It is designed to deliver precise, reliable, and fast performance for advanced electronic gadgets used in various sectors like aviation, military, telecommunications, medical, and more.

Features:

The features of our High Frequency Mixed PCB are varied and impressive. They include:

1. High-Speed:

This PCB is made out of premium quality materials that make it super-fast, reliable and effective in transmitting data at high speeds. The high-speed nature of the PCB makes it an ideal choice for digital devices that require seamless communication.

2. Mixed Signals:

The High-Frequency Mixed PCB supports a combination of RF, digital signals, and analog circuits. This PCB is ideal for devices that require a combination of signal types.

3. Lightweight and Compact:

Our High-Frequency Mixed PCB is not only efficient, but it's also lightweight and compact, making it an ideal choice for manufacturers who are conscious of portability and space-saving requirements.

4. Quality Build Material:

Our PCB is made of premium materials that guarantee the customer peace of mind, assurance of durability and reliability.

5. Cost-effective:

Our PCB is priced competitively, ensuring that merchants get the best quality at a reasonable cost.

Usage:

High-Frequency Mixed PCB is used for various electronic applications that require a combination of different signals. Here are some examples:

1. Medical Devices

High-Frequency Mixed PCB is ideal for use in various medical devices like X-ray machines, heart monitors, and CT Scanners. These devices require precise and reliable signal transmission to give accurate results.

2. Military and Aviation

The High-Frequency Mixed PCB is designed to withstand harsh and extreme conditions making it an ideal choice for military and aviation equipment. The PCB is resistant to moisture, temperature fluctuations, and radiation.

3. Wireless Communication

The High-Frequency Mixed PCB is perfect for use in wireless communication devices like smartphones, laptops, tablets, and other gadgets that transmit essential data. With the high-speed transmission and compact design, our PCB is ideal for keeping up with the rapid pace of modern electronics.

Conclusion:

High Frequency Mixed PCB is the perfect example of a modern PCB that caters to the changing demand of advanced digital gadgets. With its reliability, precision, compact design, quality materials, and reasonable cost, it's an ideal choice for merchants who value quality and efficiency. If you are looking for a PCB that delivers optimal performance and supports a combination of different signals, look no further than our product. We are confident that our product will exceed your expectations and deliver the best results.

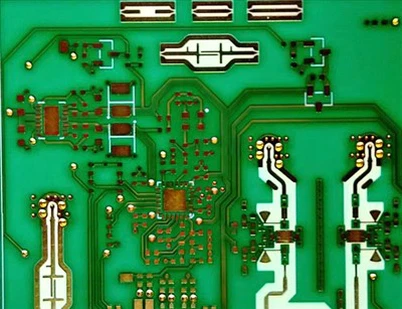

"High frequency" means that the properties of the substrate are high frequency, and "mixed" means that different materials are pressed together. High frequency mixed board is a kind of high frequency circuit board that is combined by pressing different materials.

Item:High frequency Mixed pcb

Feature:High frequency and Material mixing

Material:RO3003 + 370HR

Layer:4

Board thickness:1.19±0.12mm

This high frequency Mixed pcb is a trial product in our company, which is mainly used to test whether our company is able to produce this board. From laminate cutting to warehousing, a total of 24 processes need to be completed in production. The finished copper thickness of outer layer shall be greater than 43um, and the minimum hole copper shall be 18um. The smallest PTH hole driller is φ0.20mm. In the production process, the impedance tolerance is specially controlled and produced according to the standard of ± 5%.

FAQ

1.Are the boxes for packing provided free of charge? Can I customize the logo?

Yes, the boxes for packaging are all purchased and provided by us. We can customize the cartons required by customers according to their needs.

2.How long can I get the Product Inspection Report?

Under normal circumstances, when shipping, the paper Final Product Inspection Report will be put into the box and sent to the customer. If customers need electronic files, we can also send them to customers via email.
