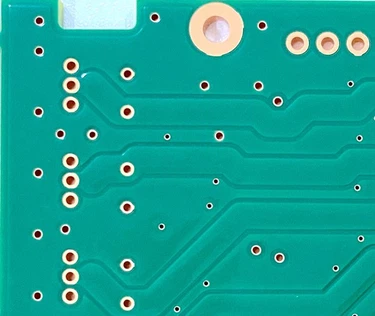

Amplifier Pcb

An amplifier pcb is a type of printed circuit board specifically used for manufacturing amplifiers. Due to the fact that amplifiers are one of the indispensable components in various electronic products, amplifier printed circuit boards are widely used. The main function of an amplifier pcb is...

Send Inquiry

Description

The main function of an amplifier pcb is to amplify electronic signals. If an electronic signal is too weak, we need to use an amplifier to amplify it to an acceptable range in order for the device to function properly. The design of the amplifier printed circuit board is to improve the efficiency and accuracy of the amplifier.

The characteristic of an amplifier pcb is that it needs to withstand high operating voltage and current. Therefore, the amplifier printed circuit board must use heavy copper foil to ensure current flow and voltage stability. Usually, the copper foil thickness of amplifier printed circuit boards is between 2OZ-3OZ, and some amplifier printed circuit boards with high current even require heavier copper foil.

In addition to the thickness of copper foil, amplifier printed circuit boards also need to use special circuit board processes, such as counter convex process. This process can make copper foil more tightly combined with the insulation layer, thereby improving the reliability and stability of printed circuit boards. Moreover, this process can also improve the heat dissipation capacity of the board and effectively control the temperature of the amplifier circuit.

Amplifier printed circuit boards typically consist of multiple layers of printed circuit boards. Each layer of printed circuit board has different functions and structures, so that the electronic components of the amplifier can be accurately placed and provide the best sound effect. When manufacturing amplifier printed circuit boards, it is not only necessary to have a complete design diagram, but also to consider factors such as the size, material, number of layers, and wiring of the printed circuit board.

The better the quality of the amplifier circuit board, the better the performance of the amplifier. Therefore, the process of manufacturing this type of printed circuit board requires rigorous production management and quality testing to ensure that the quality of the printed circuit board meets the standards. After the manufacturing of the printed circuit board, further testing is needed to ensure the performance and stability of the printed circuit board.

Amplifier printe circuit boards are widely used in various electronic products. Whether it is electronic devices such as audio devices, televisions, mobile phones, or computers, a certain amplifier is needed to provide a better experience. Therefore, in future development, the demand for amplifier printed circuit boards will continue to increase.

Amplifier PCBs are indispensable electronic components and are widely used in various electronic devices. We believe that with the continuous development and innovation of such components, future amplifier circuit boards will become more efficient and advanced.

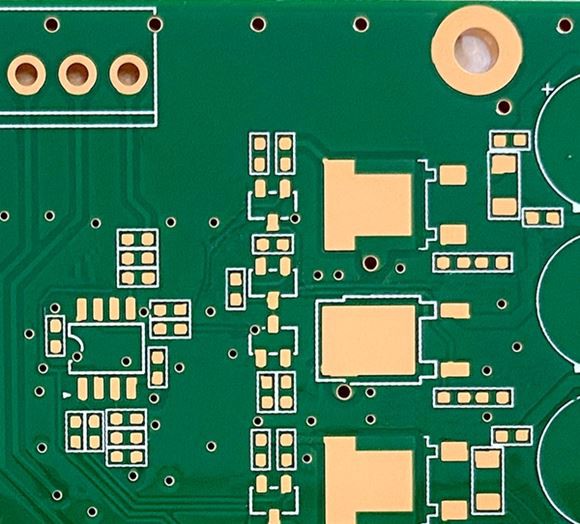

Amplifier Pcb
