Sihui Fuji PCBA introduction
Leave a message
Sihui Fuji is an electronic manufacturer targeting world-class quality levels.We can provide a complete one-stop solution from PCB design ~ PCB ~ PCBA manufacturing. High reliability, high quality, and short delivery time are what we strive to do.

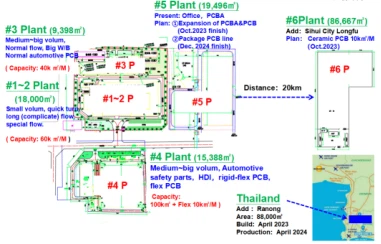

Plant Layout
SMT Production Capacity
|
Line |
Equipment |
Min parts |
SMT Capacity /H |
Line capacity/M |
|
Line 1 |
KE2060M |
0402 |
|
|
|
Line 2 |
RX-8 |
0201 |
100,000 |
57,200,000 |
|
|
RS-1R |
0201 |
47,000 |
26,884,000 |
|
|
RS-1R |
0201 |
47,000 |
26,884,000 |
|
Line 3 |
RS-1R |
0201 |
47,000 |
26,884,000 |
|
|
RS-1R |
0201 |
47,000 |
26,884,000 |
|
|
RS-1R |
0201 |
47,000 |
26,884,000 |
|
Line 4 |
RX-8 |
0201 |
100,000 |
57,200,000 |
|
|
RS1-XL |
0201 |
47,000 |
26,884,000 |
|
|
RS1-XL |
0201 |
47,000 |
26,884,000 |
|
Total capacity：300 million points / Month |
||||
|
Line |
Process |
Brand |
Model |
Engineering ability |
Min PCB (L*W) |
Max PCB (L*W) |
|
|
Line 4 |
Laser marking |
Ruiitian |
RTM-C450 |
laser mark |
±0.02um |
50x50mm |
450x450mm |
|
|
Printing |
GKG |
GKG-GLS |
printing |
±12um/±6σ |
50x50mm |
870x610mm |
|
|
SPI |
Sinic - Tek |
S8080L |
resolution |
13um |
50x50mm |
630x550mm |
|
|
SMT 3sets |
JUKI |
RX-8 / RS-1RS /RS1-XL |
X/Y axis accuracy |
±35um |
50x50mm |
950x370mm |
|
|
AOI before reflow |
Sinic - Tek |
S510D |
resolution |
10um |
50x50mm |
550x450mm |
|
|
N2 reflow |
JIngtuo |
JTR-1003N |
Temparature zone |
10 |
W：50mm |
W：450mm |
|
|
AOI after reflow |
Sinic - Tek |
S510D |
resolution |
10um |
50x50mm |
550x450mm |
DIP layout and capacity
1、Wave soldering: 3 line with 4 zone Up-Down preheat and N2 device, the soldering qualioty and reliability is excellent.
2、Selectional soldering: 1 line with high precision, high reliability and small loss of solder.
|
Line |
Process |
Brand |
Model |
Preheat |
Max PCB width |
Solder bar |
Capacity (㎡) |
|
DIP #1 |
wave |
Ridong |
PEAK-450 |
4 zone 2 side |
450mm |
SAC305 |
10,000 |
|
DIP #2 |
wave |
Jingtuo |
SMART-450-H |
4 zone 2 side |
450mm |
SAC305 |
10,000 |
|
DIP #3 |
wave |
Jingtuo |
SMART-350-H |
4 zone 2 side |
350mm |
SAC305 |
8,000 |
|
DIP #4 |
wave |
Jingtuo |
SMART-610-H |
4 zone 2 side |
540mm |
SAC305 |
15,000 |
|
DIP #5 |
selection |
Xinrui |
SW-300S |
Min size 50x50mm |
Max size 300x250 |
SAC305 |
1,000 |
Production Equipment
JUKI mounter RS-1R
Laser marker
Solder paste printer
Collection rack

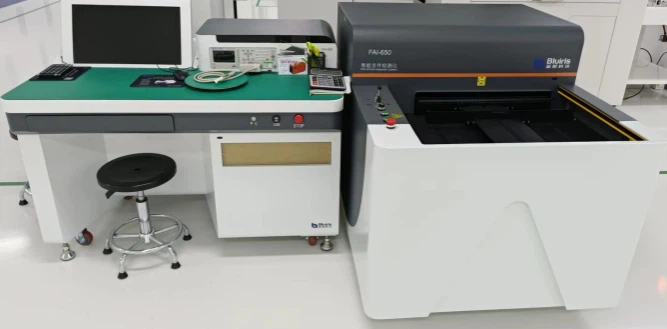

FA smart measurer
High power X-Ray
Automotive navigation
Automotive A/C control board
