Multi-stage Buried Hole PCB

Multi-stage buried hole pcb is a design and production technology for integrated circuit boards, which achieves interconnection between different circuit layers through buried hole technology, resulting in a smaller volume, stronger performance, and higher reliability of the entire printed circuit board.

The multi-stage buried hole pcb has the following characteristics.

1. It can achieve high-density wiring. In multi-stage buried hole boards, the printed circuit board not only has the characteristic of single-sided wiring, but also achieves high-density wiring by extending the circuit to different circuit layers.

2. More flexible wiring. Due to the ability to extend circuits into different circuit layers, more flexible wiring can be achieved, providing more choices for circuit board designers.

3. Improve the reliability of the pcb. The multi-stage buried hole board adopts a special buried hole technology, which is connected through metal capacity gaps and capacitor gaps, avoiding the use of simple copper bridges between circuit layers in ordinary circuit boards, thereby improving the reliability of the printed circuit board.

Improve circuit board performance. The multi-stage buried hole pcb adopts a multi-layer circuit board design, which enables more circuit designs in limited space and improves the performance of the circuit board.

Advantage

Multi-stage buried hole circuit boards have high connectivity. During the production process, the circuit board is drilled through a special thermal area between the circuit and the limiter, allowing the circuit and limiter to be completely connected, thereby achieving high connectivity.

Multi-stage buried hole circuit boards have high performance stability. Through the selection of materials, drilling techniques, lithography techniques, and control of process conditions during the production process, the performance of the printed circuit board itself is made more stable, thereby improving its reliability in industrial applications.

Sihui Fuji is a professional manufacturer of multi-stage buried hole printed circuit boards, with a leading position in quality and price in the same industry. We have outstanding advantages in terms of quality and price.

We are made of high-quality materials that meet international quality standards. During the production process, the company strictly adheres to the ISO9001 quality management system, ensuring that every pcb has excellent performance and exquisite craftsmanship. For each batch of products, the company conducts 100% quality testing to ensure that every detail of the circuit board can be perfectly presented. Therefore, Sihui Fuji's multi-stage buried hole circuit board has excellent stability and reliability, which can meet various product needs of customers.

In addition, Sihui Fuji's multi-stage buried hole pcb is very affordable. The company has achieved efficient and low-cost production through strong productivity and comprehensive supply chain management. In addition, Sihui Fuji also has a strong research and development team, always maintaining a leading advantage in technology, which can provide a more balanced price strategy while ensuring quality, and win the trust and support of customers.

Multi-stage buried hole pcb is an excellent printed circuit board design and production technology, which can achieve more flexible and diverse circuit designs in limited space, and improve the reliability and performance of the entire circuit board. Therefore, multi-stage buried hole printed circuit boards are widely used in high-end electronic products, communication equipment, computers, and other fields.

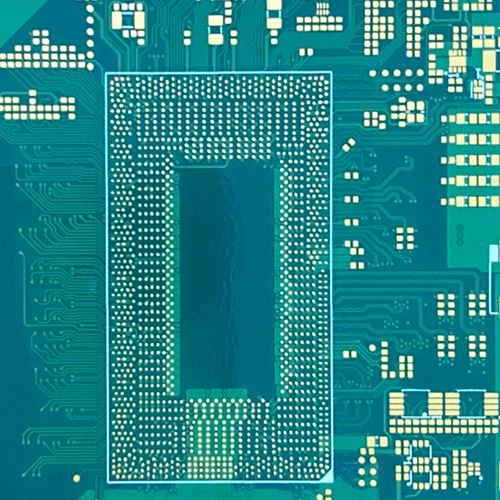

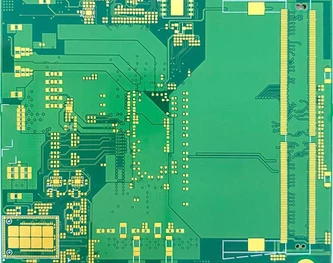

Picture：Multi-stage buried hole pcb

The specification of sample board

Item:Multi-stage buried hole pcb

Layer:16

Material:370HR

Board thickness:2.0±0.2mm

Surface treatment：ENIG
